Before you start a project, you should always understand the structures and lines that lie beneath the surface at the jobsite. It’s vital to identify the location to utilities, gas, fiber, water, telecommunications conduit, and sewer lines. This keeps your workforce safe but it also protects you from costly repairs and downtime. Municipalities can identify sewers and underground electrical lines, but if you’re doing work on private property, you’ll need to locate other underground lines yourself. Get what you need with our telecom accessories.
Pittsburgh Pipe offers locator equipment to allow you to make sure you know the complete landscape below ground level. Our units are simple to operate and durable enough to handle the rigors of any job site, any weather condition, and any measurement. This equipment uses radio frequencies to give you a picture of what lies beneath the surface. This way you can mark the trace of any lines through the jobsite, regardless of their purpose or burial depth.
Other telecom accessories we offer include:
No matter what your next project needs, Pittsburgh Pipe has the solution.

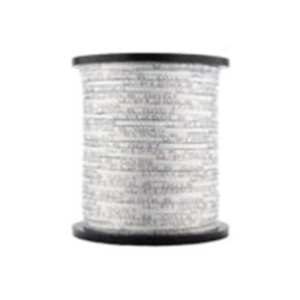

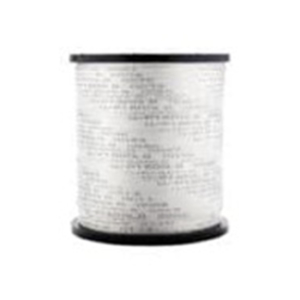

Provides a reliable means of locating cable in conduit. Sequentially footage marked.

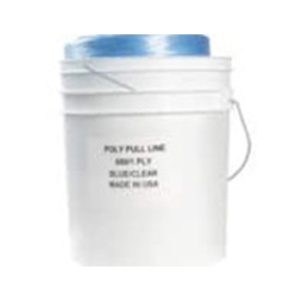

Ideal for many types of pulls including pulling rope through conduit. Will not rot, mildew, or rust. Can be left in conduit for future use. Ships in plastic pail for ease of use and storage. Available in minimum tensile strengths of 210# and 500#.

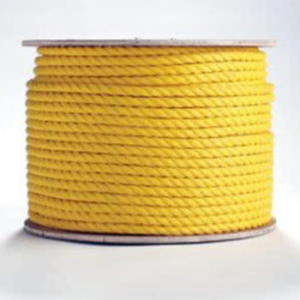

Premium grade U.V. stabilized polypropylene fiber

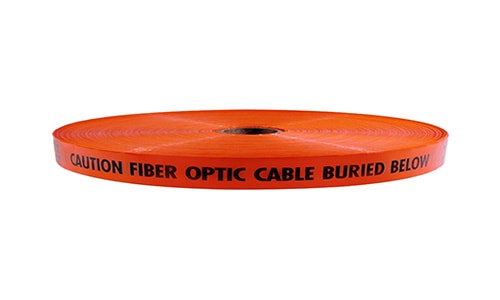

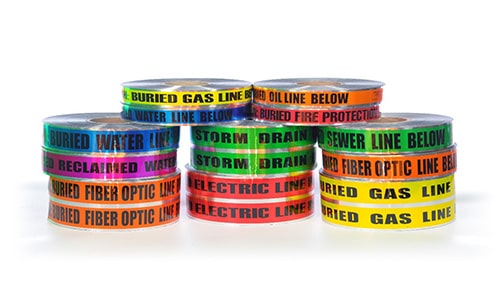

Our non-detectable polyethylene tapes meet or exceed industry standards. Our lead-free tapes contain no heavy metals or chromates and will not oxidize upon exposure to a moist or dry soil environment. This ensures long-term color integrity in the ground. When buried at a shallow depth, the tape offers protection for any cable or pipe.
The standard print style of black letters and color background create a highly visible permanent message. Our basic style is designed for open trench installation; we also offer stretch and reinforced plow styles. Many messages available in 3″ x 1000′ and 6″ x 1000′ rolls in APWA Colors. Other sizes, including 12″ and 24” wide, can be special-ordered.

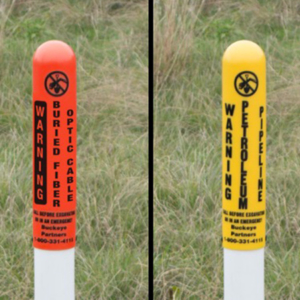

A dome marker post is an above-ground utility marker used for identifying and avoiding major costly repairs, interruptions of utility services, and injuries. The Dome Marker Post can be ordered with custom graphics, colors, and lengths.
The Cathodic Protection Test Station is an enclosure that protects circuits and terminals. It is also used in telecommunications as a grounding box. Test Stations are manufactured in the USA from high-impact UV-stabilized polycarbonate. They come standard with five stainless steel terminals and can be ordered with a High-Density Polyethylene conduit/support post. They are also available with custom graphics.

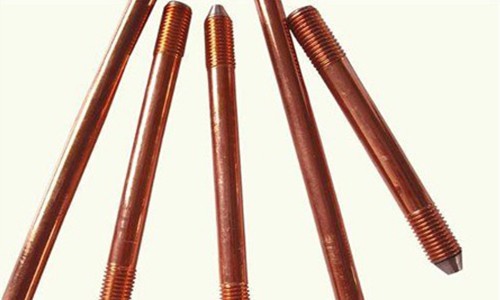

Ground rods are intended to be driven into the earth to provide grounding for substations, towers, homes, buildings, and all other structures that contain electrical products or for applications to provide protection against lightning. They are available in copper coated steel or galvanized steel.

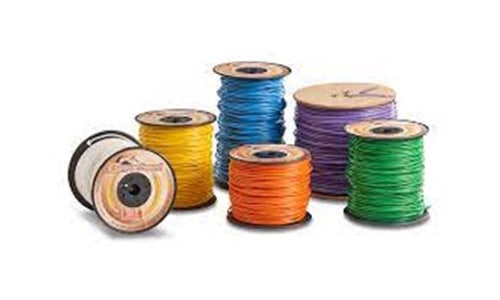

Tracer wire, also known as locator or locating wire, is used to assist in locating pipes and other lines once they have been buried in the ground. Once a pipe is laid down the tracer wire is placed along the pipe and buried next to it. There is no need to send electricity through the tracer wire. The use of tracer wire allows for a more accurate dig for repairs, replacement, or maintenance. The wire is most used in utilities such as water, sewer, gas, telecommunication, etc. Tracer wire commonly comes in 8, 10, 12, 14 and 18 gauge wire sizes.
CCS stands for copper-clad steel, this kind of tracer wire has a steel core with a copper clad coating. The two metals are bonded together with heat and pressure. The copper and steel are inseparable after the cladding process is complete. CCS offers the strength of steel with the conductivity and corrosion-resistant properties of copper. Our copper-clad steel tracer wire is insulated with a high-density polyethylene (HDPE) jacket which is designed for direct burial use.

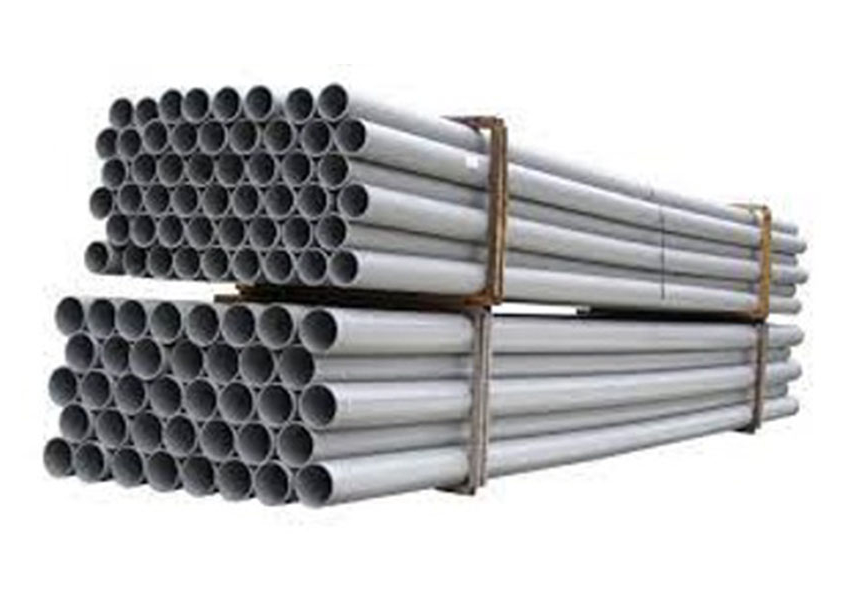

Pittsburgh Pipe offers a complete line of PVC conduit and fittings and PVC utility duct. For commercial, industrial and utility usage. PVC conduit is proven durable and effective for years of maintenance-free performance in underground, encased and exposed applications in accordance with the National Electrical Code.
Resistant to most chemicals, PVC is typically not affected by corrosive soils or salts.
Non-Magnetic and Non-Galvanic
Properties of PVC Conduit provide good insulation and no power loss or conductor heating.
Tough, durable, with high tensile strength, yet easy to handle and install right on the jobsite.
Schedule 40 & 80 rigid PVC conduit systems are sunlight resistant and are used exposed, encased in concrete, concealed in walls and in direct burial applications including systems for:
Type DB-60 and DB-120 utility duct are designed for direct burial applications. Type EB-20 and EB-35 are designed for burial encased in concrete.
Codes and Standards Compliance
Schedule 40 and Schedule 80 rigid conduits are certified to UL 651 and are allowed for use with 90º C conductors, in accordance with the National Electrical Code. They are manufactured in accordance with NEMA TC2.
Type DB and EB ducts are manufactured in accordance with NEMA TC 6&8 and are allowed for use with 90º C conductors.
PVC fittings are manufactured in accordance with NEMA TC3. The UL standard for PVC fittings is UL 651; for boxes UL 514C, for cover plates UL 514D and for enclosures UL 50.
A complete line of PVC fittings are offered ranging from simple couplers to long radius sweeps and everything in between including PVC primers and glue.

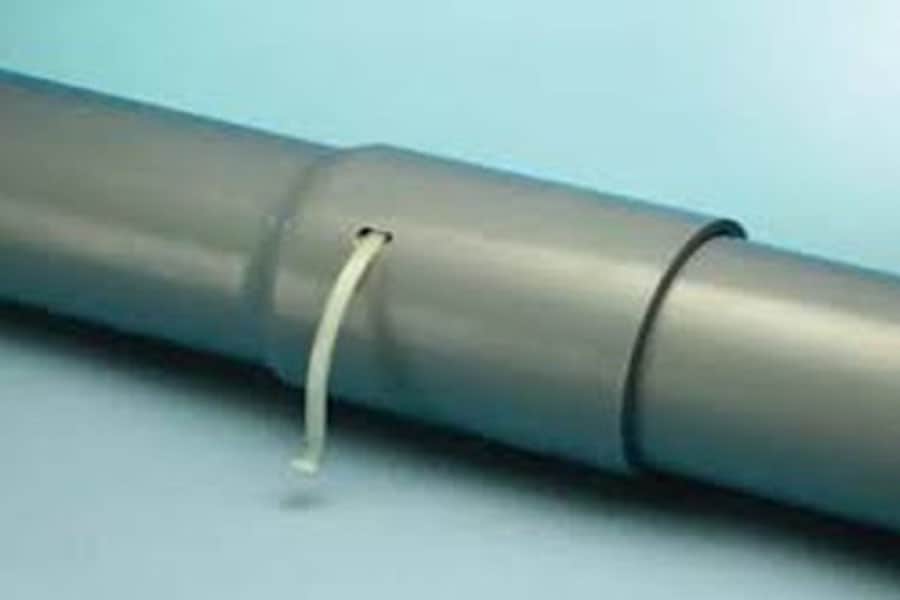

Bore-Gard® is designed and proven to meet the rigorous requirements of horizontal directional drilling for electrical and datacom applications.
Steel pipe couplings, press fit pipe couplings, and more are just a call away.
